Product Description:

•  6-in-1 Docking Station for Handheld: Experience enhanced gaming with 4K@120Hz HDMI output, Gigabit Ethernet, USB-C PD charging, USB-C 3.2 Gen 1, and dual USB-A 3.2 Gen 1 ports
• Modular Docking Station: The JSAUX docking station provides dual functionality. Use it with the gaming console directly on the dock, or detach the base for standalone use as a stand, offering flexibility for both desktop and portable setups. The extra silicone pad ensures a perfect fit, enhances stability, prevents slipping, and improves support angles for a better gaming experience
• DIY Customize Your Docking Station: Easily personalize your docking station by adding a custom card between the front cover and the dock. Just remove the cover, insert your card, and snap the cover back on. NOTE: Recommended card size is 3.00" x 1.13" x 0.01" (76.3mm x 28.7mm x 0.3mm). Custom cards NOT included
• Perfect Compatibility: Compatible with ROG Ally X, ROG Ally, Steam Deck, and Legion Go gaming consoles. Supports 100W max power delivery, which is enough to charge your ROG Ally X, ROG Ally, Steam Deck LCD/OLED, or Legion Go at full speed when paired with the original charger
• 4K Visuals: Enjoy crisp 4K@120Hz or 1080@240Hz HDMI output for vivid gaming visuals

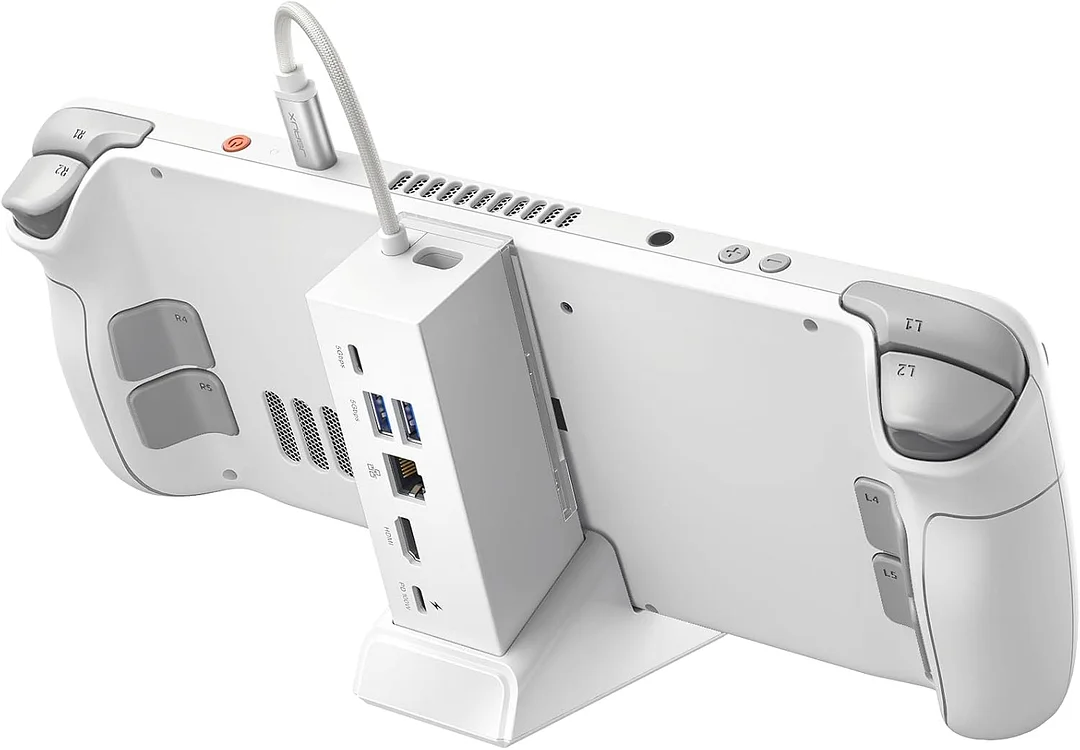

Multifunctional Docking Station HB0609

Interface Parameters

1x USB-C port for connecting to the handheld device

1x USB-C 3.2 Gen 1 (5Gbps)

2x USB-A 3.2 Gen 1 (5Gbps)

1x Gigabit Ethernet (1000 Mbps)

1x HDMI (4K@120Hz /1080P@240Hz)

1x USB-C (PD 100W input)

NOTE: The base has a minimum width of 29 mm (1.14 inches) and supports handheld devices with a thickness of less than 27 mm (1.06 inches).

Compatible with ROG Ally X, ROG Ally, Steam Deck LCD/OLED, Legion Go. It also supports ROG Ally X with a protective shell up to 3 mm (0.12 inches) thick.

• What are the dimensions of the Docking Station HB0609?

  Dock Size: 108 x 33 x 31 mm (4.25" x 1.30" x 1.22"). Dock + Stand Size: 125 x 85 x 49 mm (4.92" x 3.35" x 1.93").

• Which devices are compatible with the Dock?

  It’s compatible with ROG Ally X, ROG Ally, Steam Deck LCD, Steam Deck OLED, Legion Go, Razer Edge, AYA NEO, AYA ODIN, Logitech G Cloud, and ONEXPLAYER.

• How do I enable Turbo Mode on the ROG Ally (X)?

  To enable Turbo Mode, press the Control Center button on the left side of your ROG Ally (X) and switch to Turbo. This mode uses 25W for maximum performance, and when plugged in, it boosts to 30W for better framerates.

• Then how to enable 30W Turbo Mode?

  For 30W Turbo Mode, a 100W PD CHARGER is essential. It ensures the dock can handle the increased power demand for optimal performance.

• Why does my ROG Ally (X) stop charging at 80%? How do I charge to 100%?

  Battery Care Mode limits charging to 80% to extend battery life. To charge to 100%, open the MyASUS app, go to Customization, turn off Battery Care Mode, and enable Instant Full-Charge Mode, which will take effect for 24 hours.

3x USB 3.1

Dock your Handheld faster with a hard disk, keyboard & mouse.

1000Mbps Gigabit Ethernet

Makes downloading and running games faster and more stable.

Ultra HD Visuals Await

Supports up to 4K@120Hz or 1080P@240Hz resolution to meet all your needs.

Excellent External

Stable and reliable, offering flexibility for both desktop and portable setups.
