Product Description：
- Product Name: Joystick Momentary Switch; Type: 2-position momentary;: 2NO; Rated Voltage: 0~380V AC (50Hz); 0~220V DC; Mounting Hole Diameter: 22mm; Resistance: 50mΩ; Isolation Resistance: 100Ω.
- Produnt Feature: The joystick momentary switch is of 2 normally open contacts, easy for mounting and operation, with long serving life.
- Mechanical Life: The joystick momentary switch is of more than 500, 000 times mechanical life, and more than 500,000 times electrical life.
- Wide Application: The joystick momentary switch could be used to control magnetic starter, contactor, relay and other electrical circuits, widely used for industrial control AC 50Hz and DC circuits.
- Physical Advantages: The rubber sleeve cover of the joystick momentary switch is resistant to water, oil and dust, the stick returning to its original position once released.

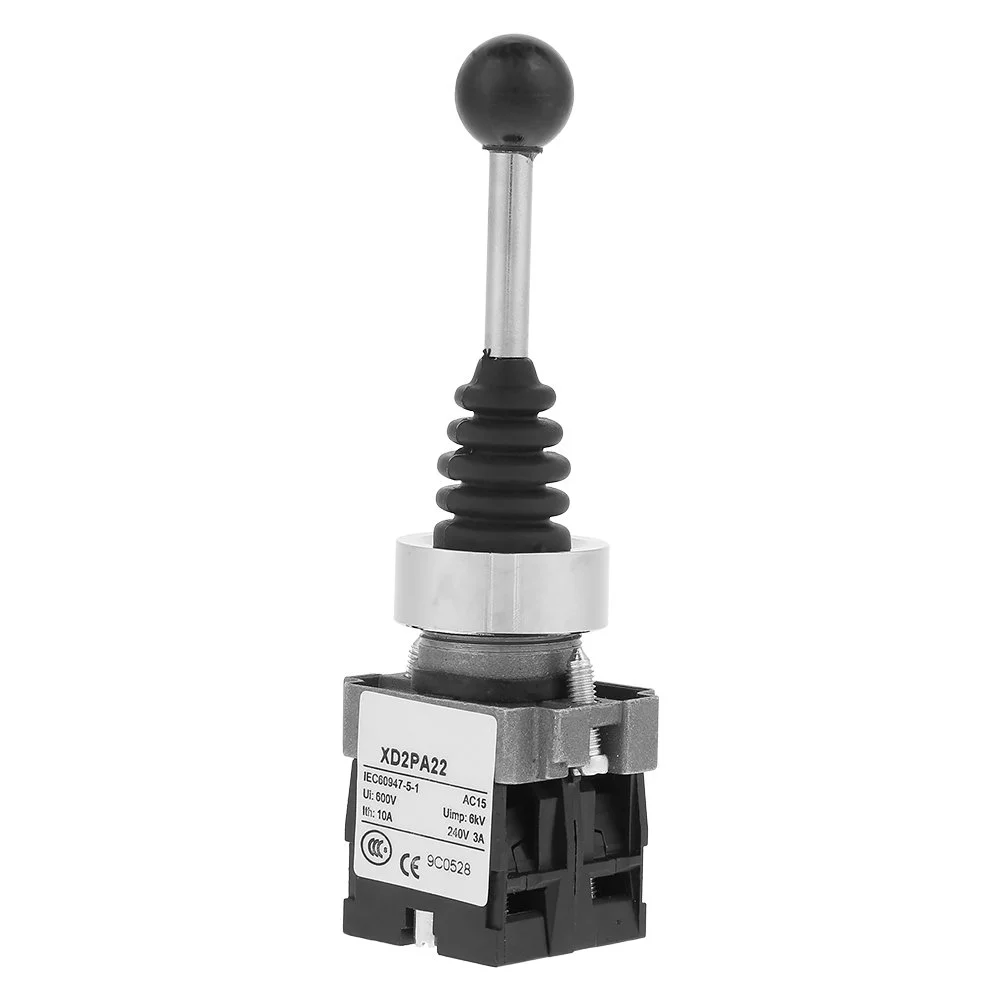

2NO Spring Return Joystick Switch 2 Position Momentary Control Switch for XD2PA22CR, 22mm Mounting Hole Diameter
Specifications:
- Type: 2-position momentary
- Rated Voltage: 0~380V AC (50Hz); 0~220V DC
- Mounting Hole Diameter: 22mm
- Size: 12.5*4cm/4.9*1.6in
- Operating Temperature: -25~+55℃ (no ice)
- Operating Humidity: 45~85%RH (no condensation)
- : ≤50mΩ
- Isolation: ≥100Ω
- Max. Withstand Voltage: 3000V, AC 50Hz
- Vibratility: 50Hz, amplitude is about 1mm
- Shock: >10m/s² (about 10G)
- Weight: 124g(approx.)
- Package Includes: 1 x Switch
